Model：P2.6/P3.076/P3.91/P4.81/P6.67
Application:
It is widely used in stage leasing, song and dance events, various press conferences, exhibitions, stadiums, theatres
Auditorium, lecture hall, multi-function hall, conference room, performance hall, high entertainment place, etc
Product features:

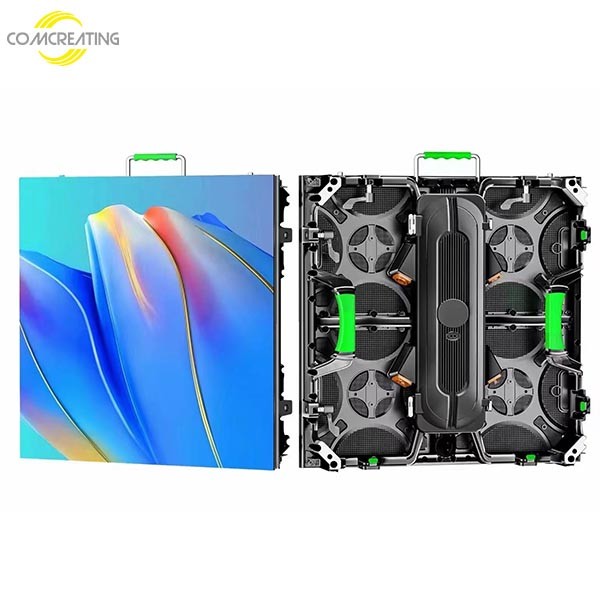

1. with the production process of die-casting aluminum, the box has strong strength and is not easy to deform
2. ultra thin and ultra light hoisting design, convenient for quick installation and disassembly
3. refresh frequencyhigh, clear and vivid picture
4. fast fixture design, seamless splicing
5. the box structure is simple and beautiful, with good heat dissipation, no fan and no noise design
Items | Indoor P2.6 | Indoor P3.076 | Indoor P3.91 | Indoor P4.81 | Outdoor P3.91 | Outdoor P4.81 | Outdoor P6.67 |
Pixel Configuration | 1R1G1B SMD3-in-1 | ||||||
Pixel Pitch | 2.6mm | 3..076mm | 3.91mm | 4.81mm | 3.91mm | 4.81mm | 6.67mm |
Pixel Density | 147,456 | 104,976 | 65,536 | 43,264 | 65,536 | 43,264 | 21,904 |
Module Size(mm) | 250x250 | ||||||
Pixels/Module | 96x96 | 81x81 | 64x64 | 52x52 | 64x64 | 52x52 | 37x37 |
Cabinet Size(mm)(WxHxT) | 500x500x78 / 500x1000x78 | ||||||
Pixels/Cabinet | 192x192 | 162x162 | 128x128 | 104x104 | 128x128 | 104x104 | 74x74 |
Cabinet Weight | 6KG | 7kg | |||||
Brightness | ≥800cd/㎡ | ≥4500cd/㎡ | |||||
Viewing Distance | >2.6m | >3m | >4m | >5m | >4m | >5m | >6m |
Power Consumption(W/㎡) | Max: 400 / Ave: 150 | Max: 1000 / Ave: 300 | |||||
Driver Mode | 1/32scan | 1/16scan | 1/16 scan | 1/8scan | 1/8scan | 1/7scan | 1/6scan |
IP Rating | IP20 | IP65 | |||||
Operating Temperature | -30℃~ +50℃ | ||||||
Viewing Angle | H: 140°; V: 140° | ||||||
Cabinet Material | Die-casting Aluminum | ||||||
Refresh Rate | ≥1920HZ adjustable | ||||||
LED Life | 100,000 hours | ||||||
Supply Voltage | AC220V/50HZ; AC110V/60HZ | ||||||
Operating Humidity | 10% - 90% | ||||||
Gray Scale | Red, Green and Blue each 16K | ||||||
Display Color | 4096 Billion | ||||||
