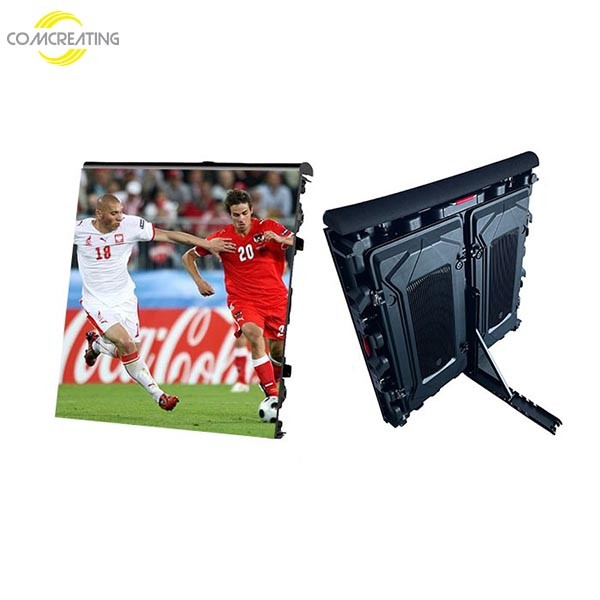

Specification model:p6/p8/p10
Product features:
1. with high refresh rate, highbrightness and high grayscale, it can clearly present every exciting event moment
2. the box can be freely adjusted between 65 ° and 90 ° to ensure the best visual angle
3. the soft mask and the soft cushion on the top of the box are designed to effectively protect the display screen and personnel when the screen is severely impacted
4. the simple snap on connector design between the boxes creates extremely convenient conditions for manual rapid installation and disassembly of the screen
5. the high efficiency optical fiber transmission system is adopted to effectively reduce the signal delay and ensure the consistency of the game picture playing
6. dual backup power supply and data control signal, even if a single module is abnormal, it will not affect the normal operation of other modules
7.high strength anti-aging fabric, IP65 degree of protection, can withstand any environmental t
Model | P2.5 | P3 | P3.91 | P4 | P4.81 | P5 | P6 | P6.67 | P8 | P10 | ||
Pixel composition | 1R1G1B SMD3-in-1 | |||||||||||
Point spacing | 2.5mm | 3mm | 3.91mm | 4mm | 4.81mm | 5mm | 6mm | 6.67mm | 8mm | 10mm | ||
Pixel density(点/㎡) | 160,000 | 111,111 | 65,536 | 62,500 | 43,264 | 40,000 | 27,777 | 22,500 | 15,625 | 10,000 | ||
Module Size(mm) | 320x160 | 192x192 | 250x250 | 256x128 /320x160 | 250x250 | 320x160 | 192x192 | 250x250 | 256x128 /320x160 /320x320 | 320x160 /320x320 | ||
Module pixel（点） | 128x64 | 64x64 | 64x64 | 64x32 /80x40 | 52x52 | 64x32 | 32x32 | 37x37 | 32x16 /40x20 /40x40 | 32x16 /32x32 | ||
RecommendBox size (mm)（widexHigh） | 960x960 | 960x960 | 1000x1000 | 1024x1024 /960x960 | 1000x1000 | 960x960 | 960x960 | 1000x1000 | 1024x1024 /960x960 | 960x960 | ||
Box pixel(点) | 384x384 | 320x320 | 256x256 | 256x256 /240x240 | 208x208 | 192x192 | 160x160 | 148x148 | 128x128 /120x120 | 96x96 | ||
Box weight(kg/㎡) | safe：50/Aluminum box：40 | |||||||||||
Brightness（cd/㎡） | >6000 | |||||||||||
Sight distance | >2.5m | >3m | >4m | >4m | >5m | >5m | >6m | >7m | >8m | >10m | ||
Power waste(W/㎡) | Max: 1000 Ave: 300 | |||||||||||
Driving mode | 1/16 | 1/16 | 1/8 | 1/8 | 1/7 | 1/8 | 1/8 | 1/6 | 1/4 | 1/2 | ||
visual angle | H: 120°; V: 120° | |||||||||||
Box material | Cold Rolled Steel/Aluminum | |||||||||||
Refresh frequency | 1920HZ/3000HZ | |||||||||||
service life | 100,000 hours | |||||||||||
working voltage | AC220V/50HZ; AC110V/60HZ | |||||||||||
working temperature | -30℃ ~ +50℃ | |||||||||||
Operating humidity | 10% - 90% | |||||||||||
灰度等级 | Red, Green and Blue each 16K | |||||||||||
Display color | 4096 Billion | |||||||||||
Degree of protection | Front IP65 | |||||||||||
If you are interested in our products and want to know more details, please leave a message here and we will reply to you as soon as possible.
